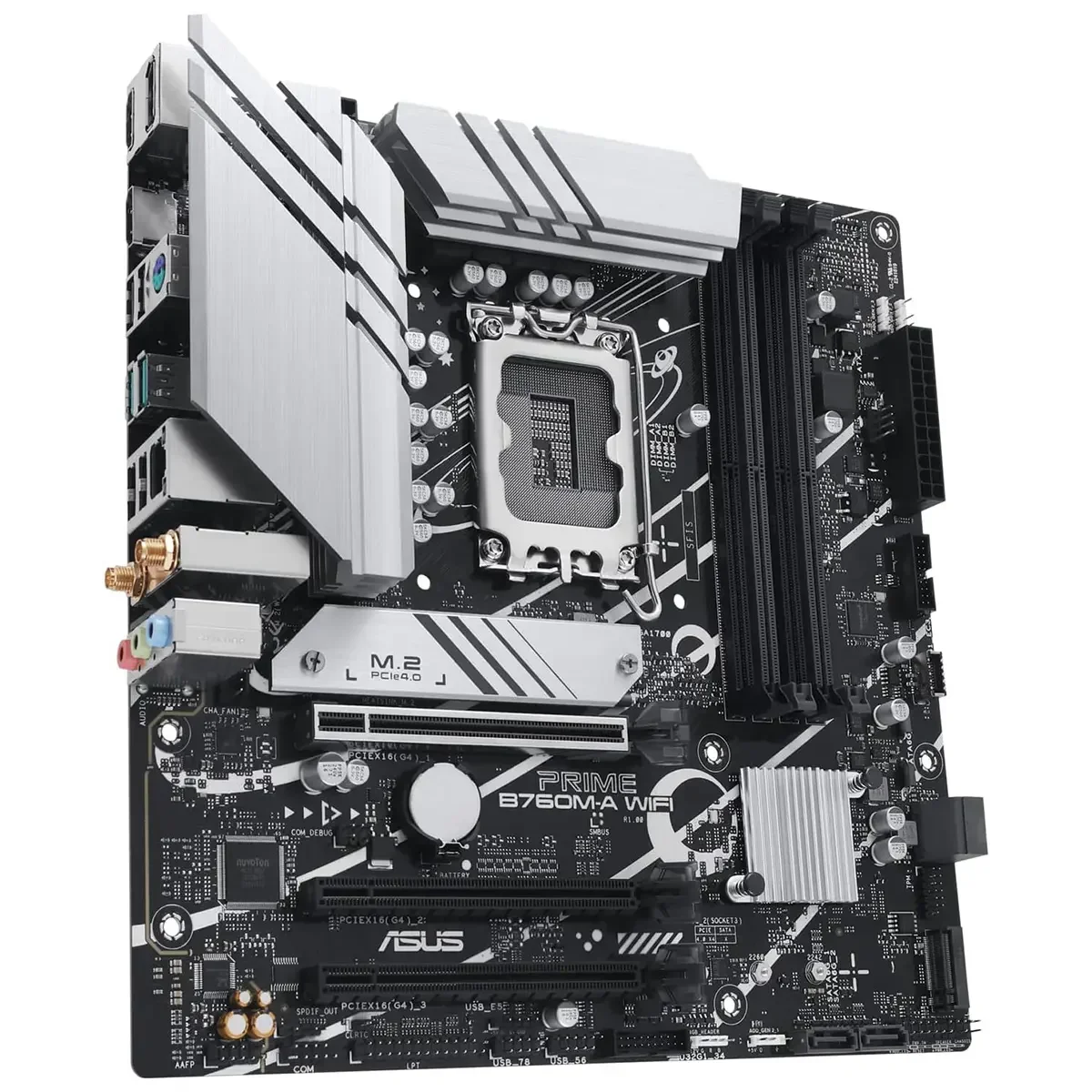

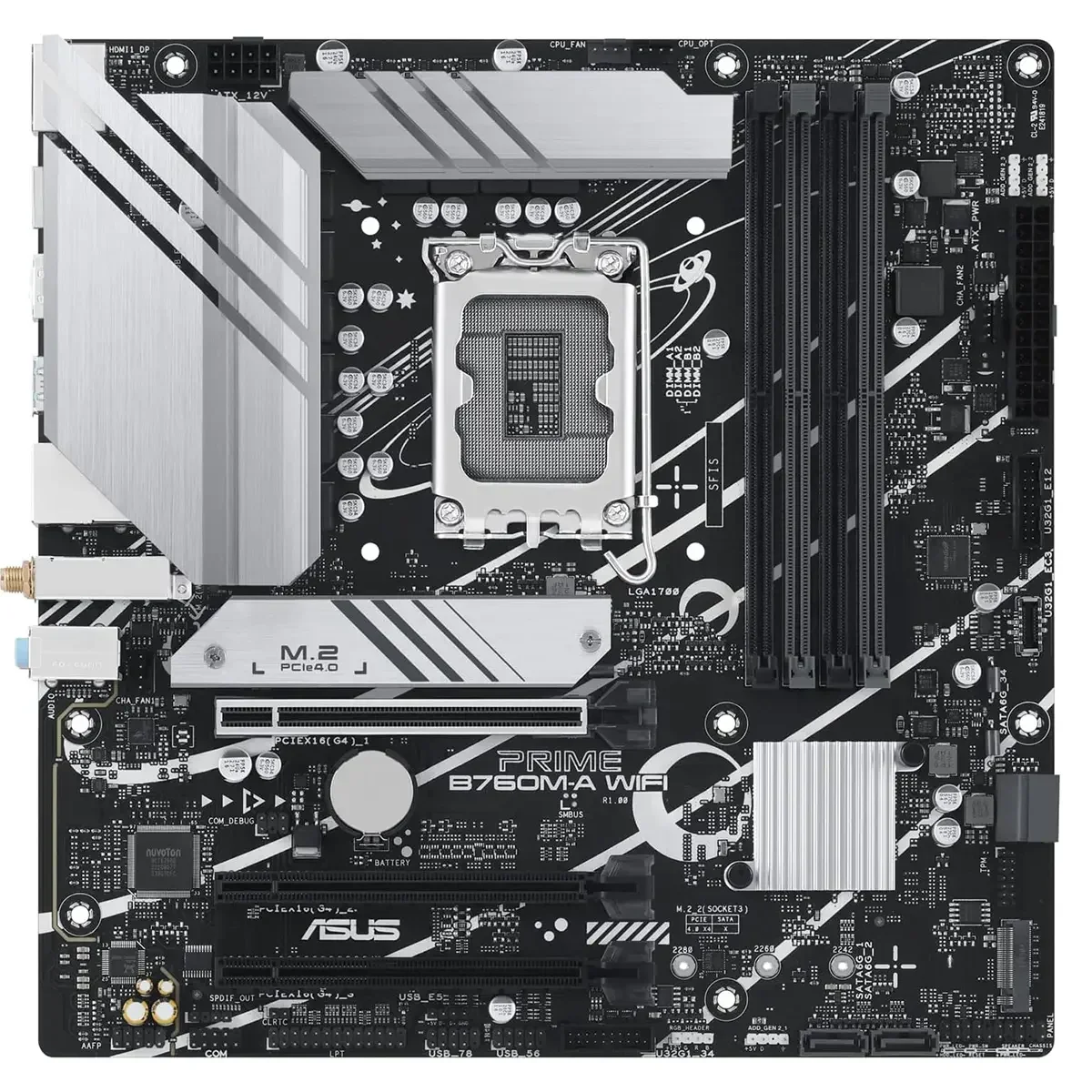

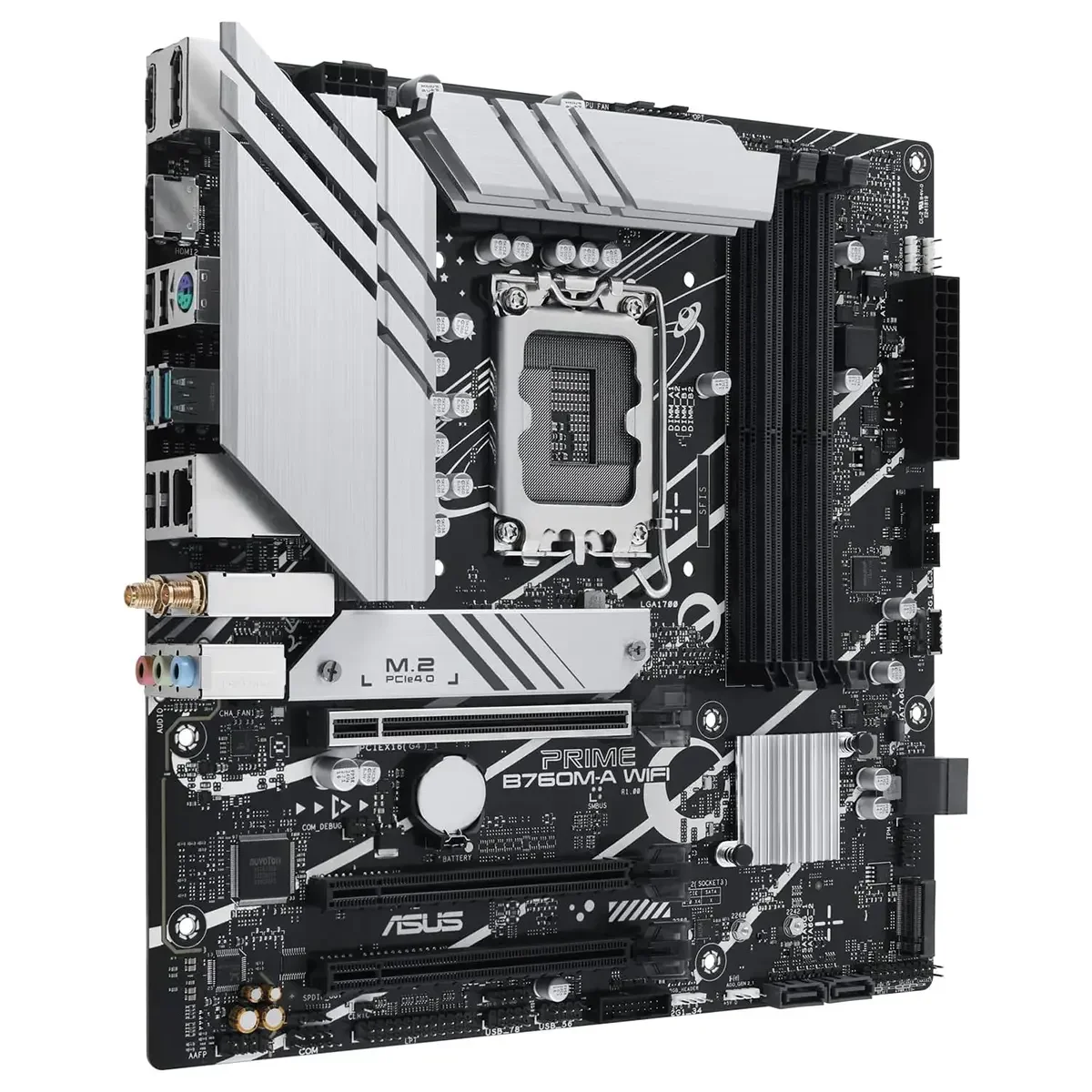

PRIME B760M-A WiFi Micro-ATX Motherboard with Intel B760 Chipset, LGA1700, DDR5 7200+ MHz OC, PCIe 4.0, WiFi 6, Bluetooth 5.2, 2.5Gb Ethernet, Dual M.2, USB-C & Aura Sync

Features

• Intel B760 Platform with Broad LGA1700 Processor Support: Built around the Intel B760 chipset and LGA1700 socket, the motherboard provides a flexible foundation for Intel Core 14th, 13th and 12th Gen processors as well as compatible Pentium Gold and Celeron CPUs, making it suitable for buyers building everything from an efficient UAE home or office PC to a powerful gaming, productivity or content-creation desktop while retaining a wide choice of processors within the established LGA1700 ecosystem.
• High-Speed DDR5 Memory with Up to 192GB Capacity: Four DDR5 DIMM slots provide substantial memory expansion with current ASUS specifications supporting up to 192GB of system memory and overclocked speeds reaching DDR5 7200+ MHz, while dual-channel architecture, Intel XMP and ASUS OptiMem II help preserve signal integrity and provide improved memory tuning potential for gaming, multitasking, professional applications, large projects and memory-intensive everyday workloads.
• PCIe 4.0 Graphics and Dual High-Speed M.2 NVMe Storage: The primary PCIe 4.0 x16 slot provides high-bandwidth connectivity for modern dedicated graphics cards, while two onboard M.2 Key M slots support PCIe 4.0 x4 NVMe SSDs with theoretical transfer bandwidth of up to 64Gbps, helping deliver fast system boot times, responsive application loading and high-speed game storage, with four additional SATA 6Gb/s ports and Intel RAID support providing flexible options for larger SSD and hard-drive configurations.
• WiFi 6, 2.5Gb Ethernet and Bluetooth 5.2 Networking: Integrated 2x2 WiFi 6 supports both 2.4GHz and 5GHz bands and offers theoretical wireless bandwidth reaching up to 2.4Gbps under suitable conditions, while Realtek 2.5Gb Ethernet delivers significantly higher wired network capacity than standard Gigabit Ethernet and Bluetooth 5.2 provides convenient connectivity for compatible keyboards, mice, headsets, speakers, controllers and other wireless peripherals.

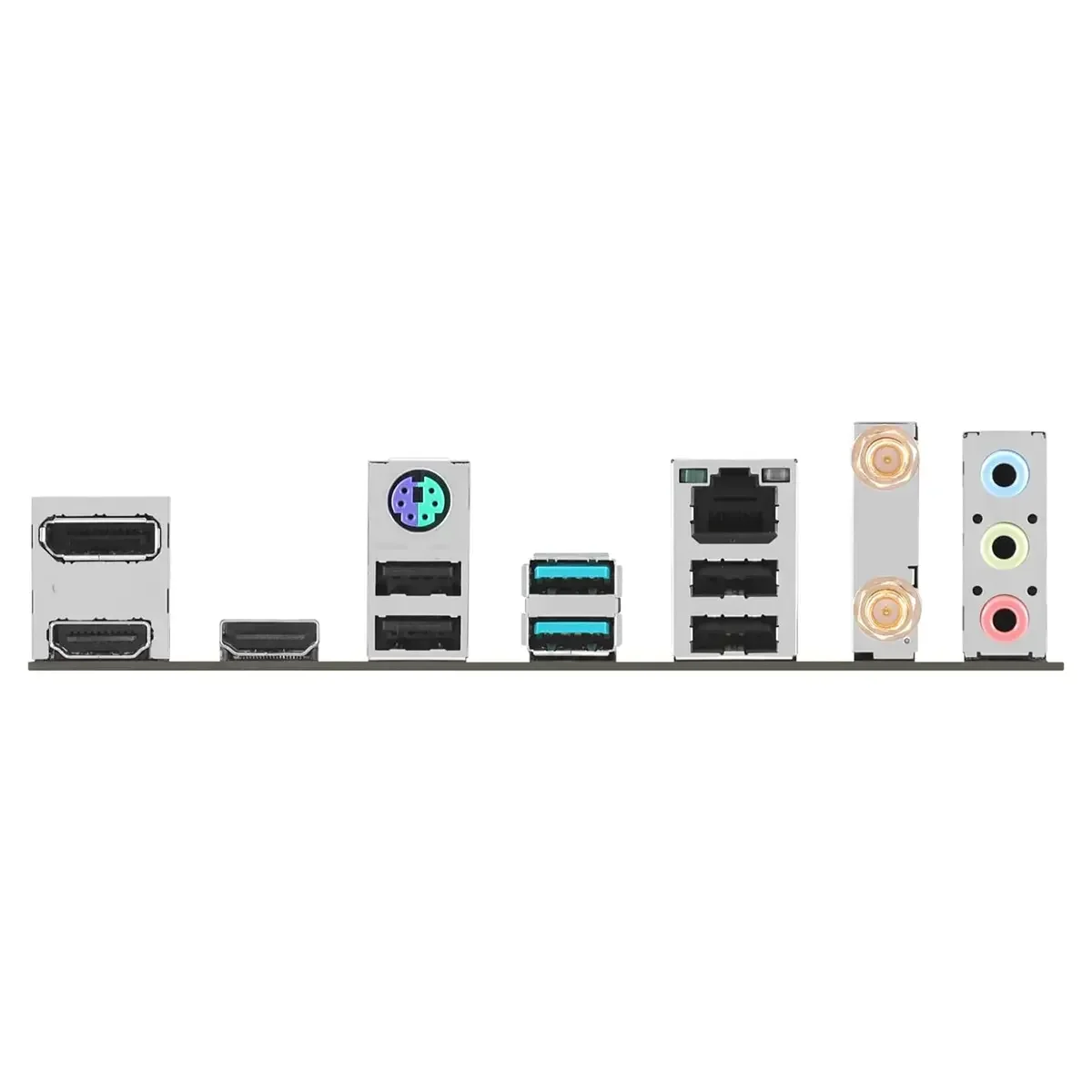

• Fast USB Connectivity and Flexible Triple Display Outputs: Rear connectivity includes two USB 3.2 Gen 2 Type-A ports alongside four USB 2.0 Type-A ports, while internal headers support additional USB 3.2 Gen 1 connections and a convenient front-panel USB Type-C port capable of transfer speeds up to 5Gbps; one DisplayPort 1.4 and two HDMI 2.1 outputs can each support resolutions up to 4K at 60Hz when paired with a processor featuring compatible integrated graphics, providing practical multi-display capability for productivity, entertainment and everyday computing.
• Comprehensive VRM, M.2 and Chipset Cooling with Fan Xpert 2+: Dedicated VRM heatsinks and thermal pads improve heat transfer from the motherboard power-delivery components, while the integrated M.2 heatsink helps reduce SSD thermal throttling during sustained data transfers and the PCH heatsink manages chipset temperatures; configurable CPU and chassis fan headers combined with ASUS Fan Xpert 2+ provide flexible cooling control to help maintain stable performance under gaming, productivity and extended high-load workloads.
