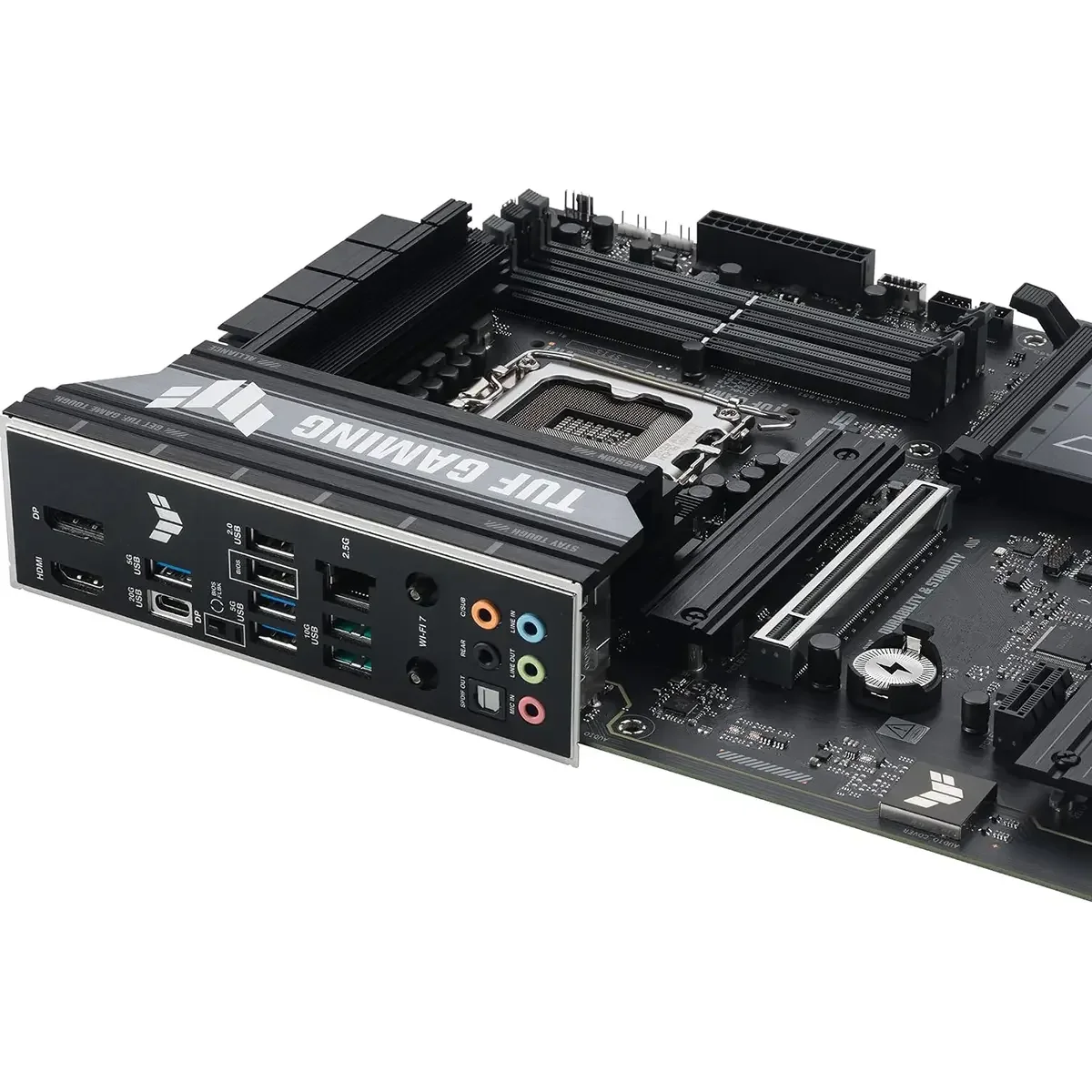

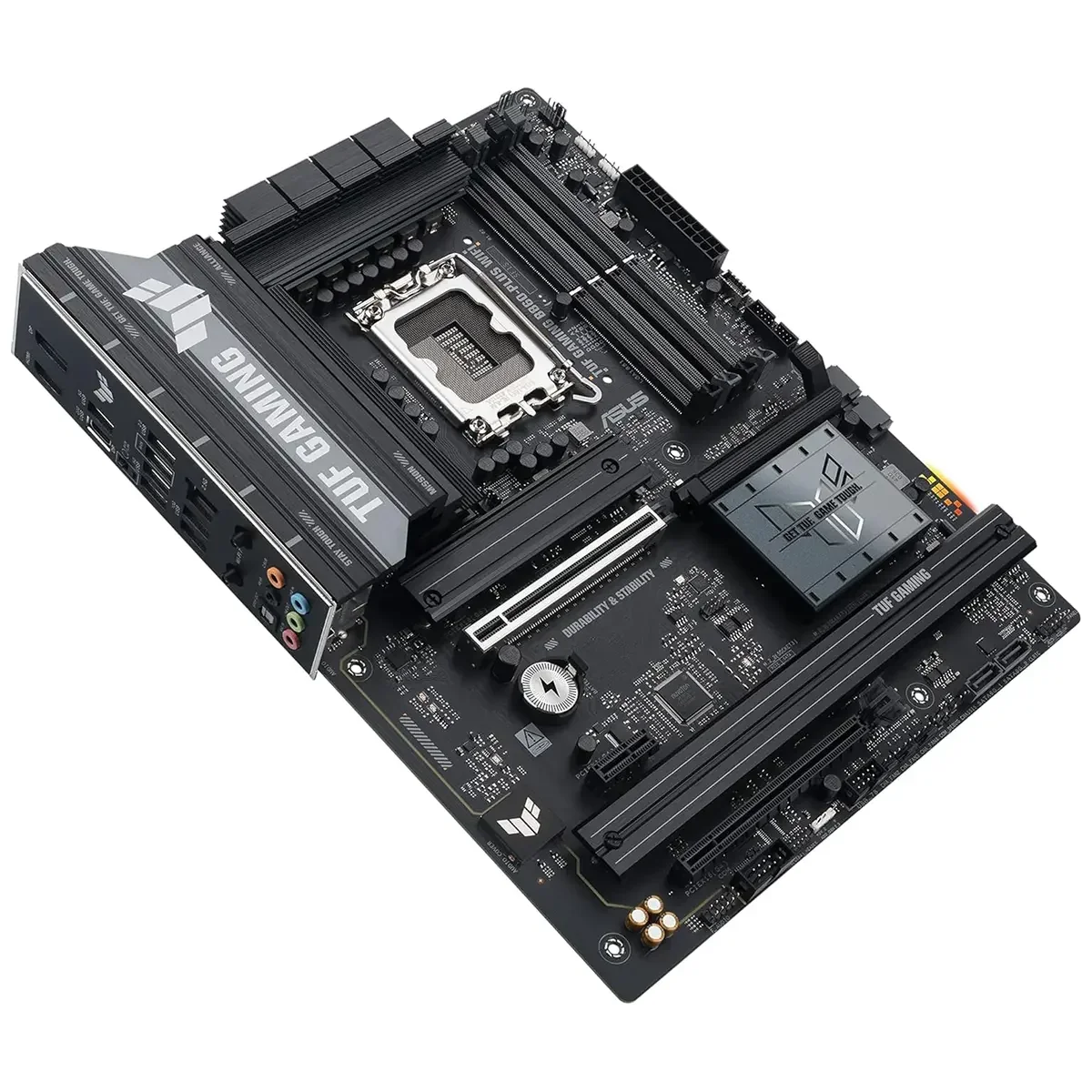

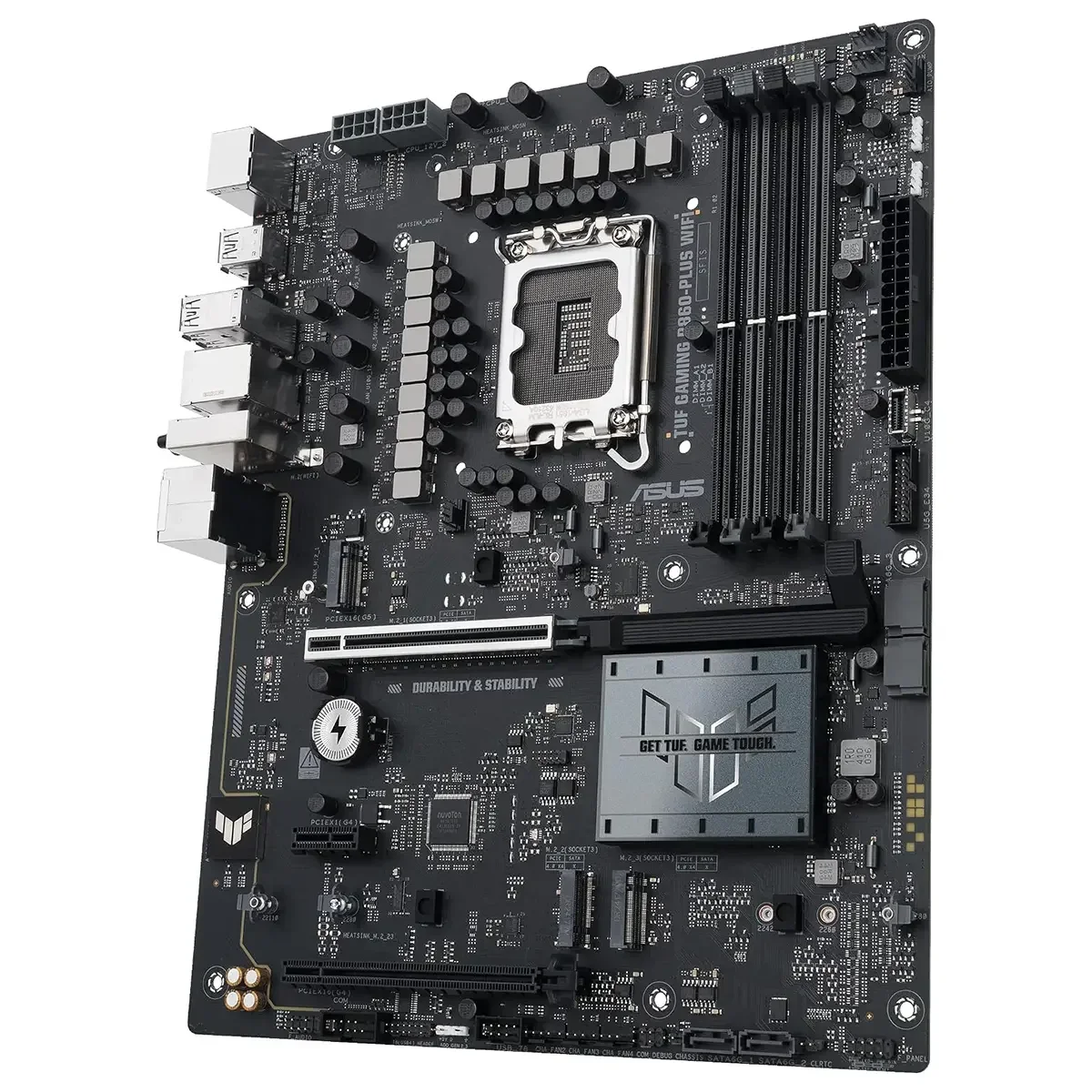

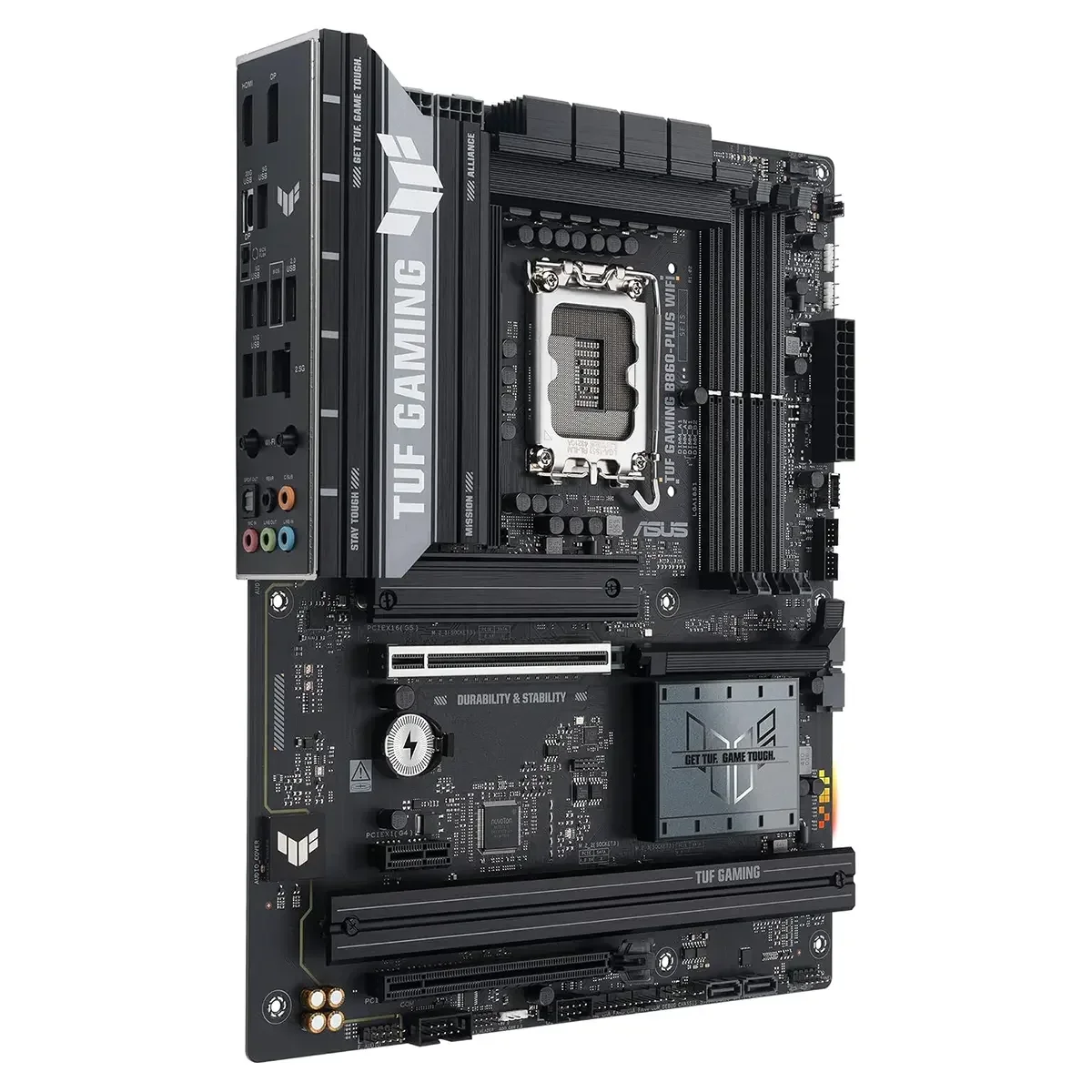

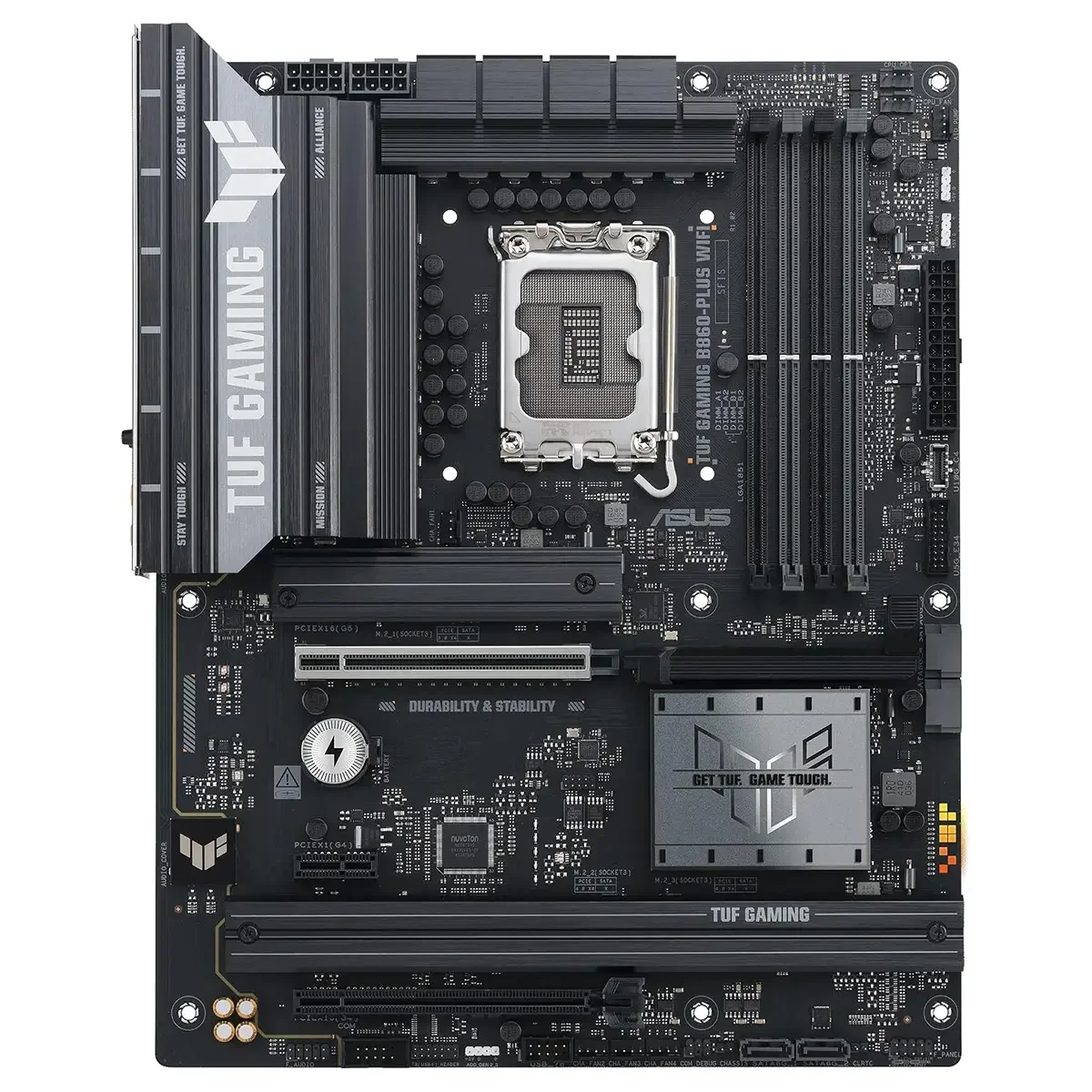

TUF Gaming B860-Plus WiFi ATX Motherboard with Intel B860 Chipset, LGA1851, DDR5 8666+ MT/s OC, PCIe 5.0, WiFi 7, 2.5Gb Ethernet, USB-C 20Gbps & 3 M.2 Slots

Features

• Intel Core Ultra Series 2 Ready with Premium 80A Power Delivery: Built around the Intel B860 chipset and LGA1851 socket, this ATX gaming motherboard supports Intel Core Ultra Series 2 processors and combines them with a premium 12+1+2+1 power-stage configuration rated at 80A, enlarged VRM heatsinks, DIGI+ digital power control and dual 8-pin CPU power connections to provide stable, efficient and dependable power delivery for demanding gaming, multitasking, content creation and advanced AI PC workloads.
• High-Speed DDR5 Memory with up to 256GB Capacity: Four DDR5 DIMM slots provide extensive memory expansion with support for up to 256GB and overclocked memory speeds reaching 8666+ MT/s, while dual-channel memory architecture, Intel XMP, ASUS Enhanced Memory Profile III and DIMM Fit technologies help users optimize memory compatibility, stability and performance for responsive gaming, productivity, professional software and high-performance PC builds.
• PCIe 5.0 Graphics and Next-Generation NVMe Storage Expansion: A high-bandwidth PCIe 5.0 x16 slot provides support for modern and next-generation graphics cards, while three integrated M.2 sockets include one PCIe 5.0 x4 connection and two PCIe 4.0 x4 connections for high-speed NVMe SSD storage, complemented by four SATA 6Gb/s ports for additional SSDs and hard drives, making the motherboard suitable for gaming systems requiring fast loading, large storage capacity and flexible future upgrades.

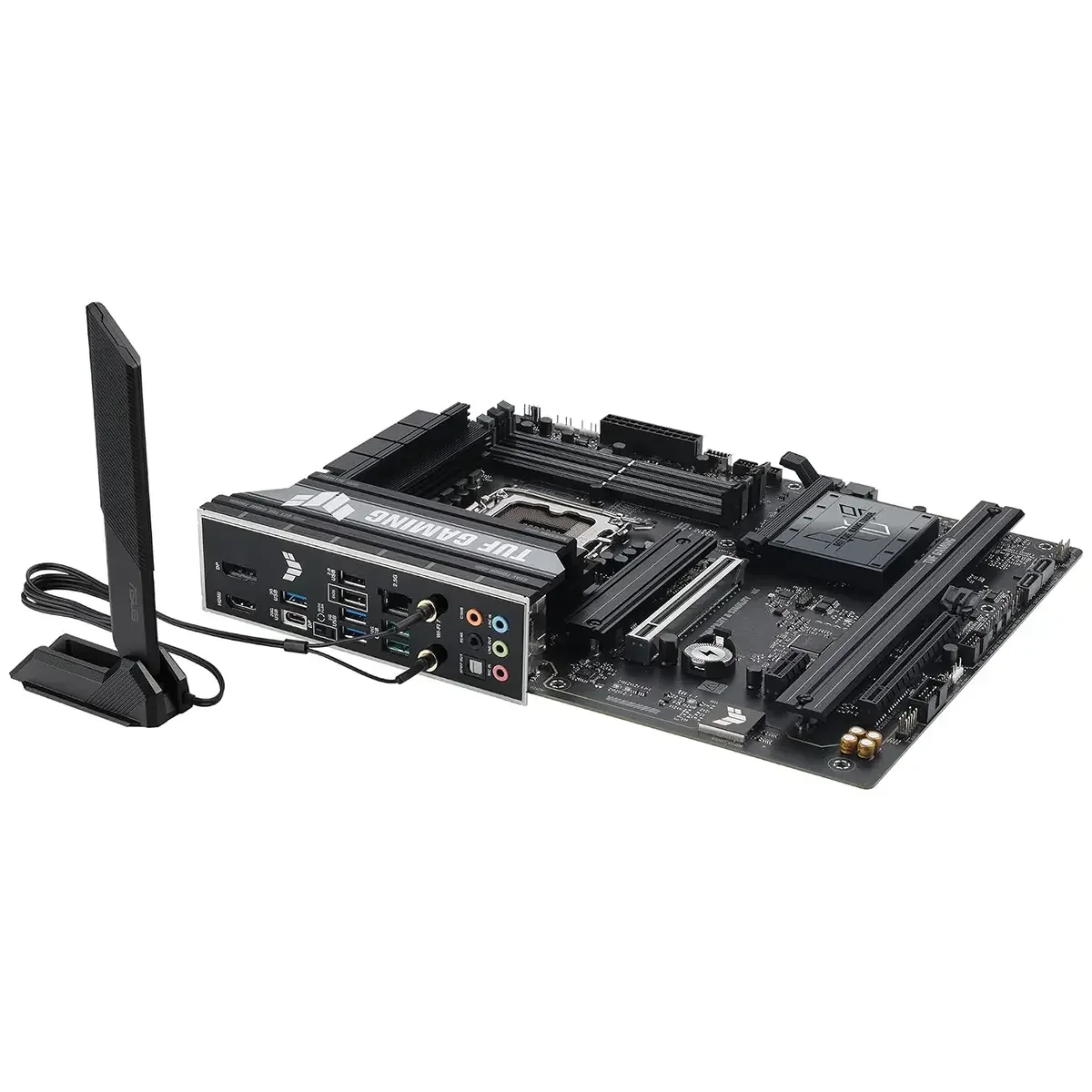

• WiFi 7, 2.5Gb Ethernet and Bluetooth 5.4 Connectivity: Integrated 2x2 WiFi 7 supports 2.4GHz, 5GHz and 6GHz wireless bands with 160MHz bandwidth and theoretical transfer speeds up to 2.9Gbps, while Realtek 2.5Gb Ethernet with TUF LANGuard provides fast and reliable wired networking and Bluetooth 5.4 enables convenient connectivity with compatible wireless keyboards, mice, gaming controllers, headphones, speakers and other peripherals.
• USB-C 20Gbps and Flexible 4K Display Connectivity: The extensive rear connectivity includes a USB-C port operating at up to 20Gbps with DisplayPort Alt Mode, two USB-A 10Gbps connections, three USB-A 5Gbps ports and two USB 2.0 ports, while HDMI 2.1 and DisplayPort 1.4 provide display connectivity supporting resolutions up to 4K at 60Hz with a compatible processor, making it practical for gaming monitors, productivity displays, fast external SSDs and modern USB accessories.
• Advanced Cooling and TUF Protection for Reliable Long-Term Performance: Large VRM heatsinks, dedicated M.2 thermal solutions, CPU and optional CPU fan connections, an AIO pump header and four chassis fan headers provide comprehensive cooling control, while TUF protection technologies including ESD Guards, overvoltage protection, SafeSlot, TUF LANGuard, ProCool connections and a stainless-steel rear I/O design help improve durability, electrical protection and stability during extended gaming sessions and sustained system workloads.
