OverviewSpecification
Features

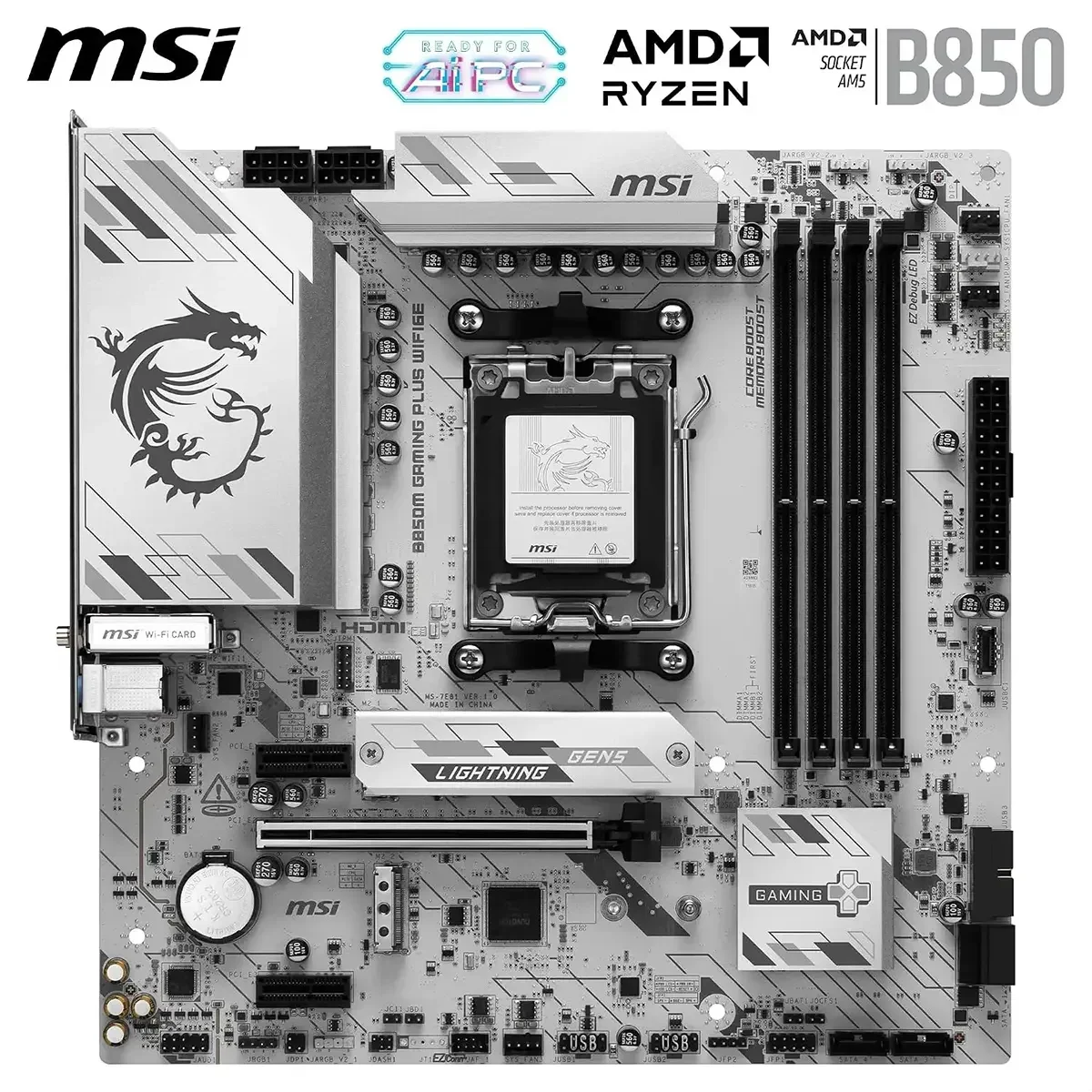

AMD AM5 Ryzen Gaming Platform: Built around the AMD B850 chipset and AM5 socket, the B850M GAMING PLUS WIFI supports compatible AMD Ryzen 9000, Ryzen 8000 and Ryzen 7000 Series desktop processors, giving gamers, creators and professional users a flexible modern platform for powerful gaming systems, content-production computers, high-performance multitasking and AI-ready desktop applications while retaining access to current-generation DDR5 memory, PCIe 5.0 graphics connectivity and fast NVMe storage.
DDR5 8200+ MT/s Performance & 256GB Capacity: Four DDR5 UDIMM slots support a substantial maximum memory capacity of 256GB, while supported Ryzen 9000 configurations can reach overclocked speeds of up to 8200+ MT/s. AMD EXPO support simplifies compatible performance-memory tuning, while Dual-Channel operation, Memory Boost technology and an optimized PCB layout help maintain reliable signal integrity for memory-intensive gaming, creative workloads, virtual machines, large project files and advanced multitasking.

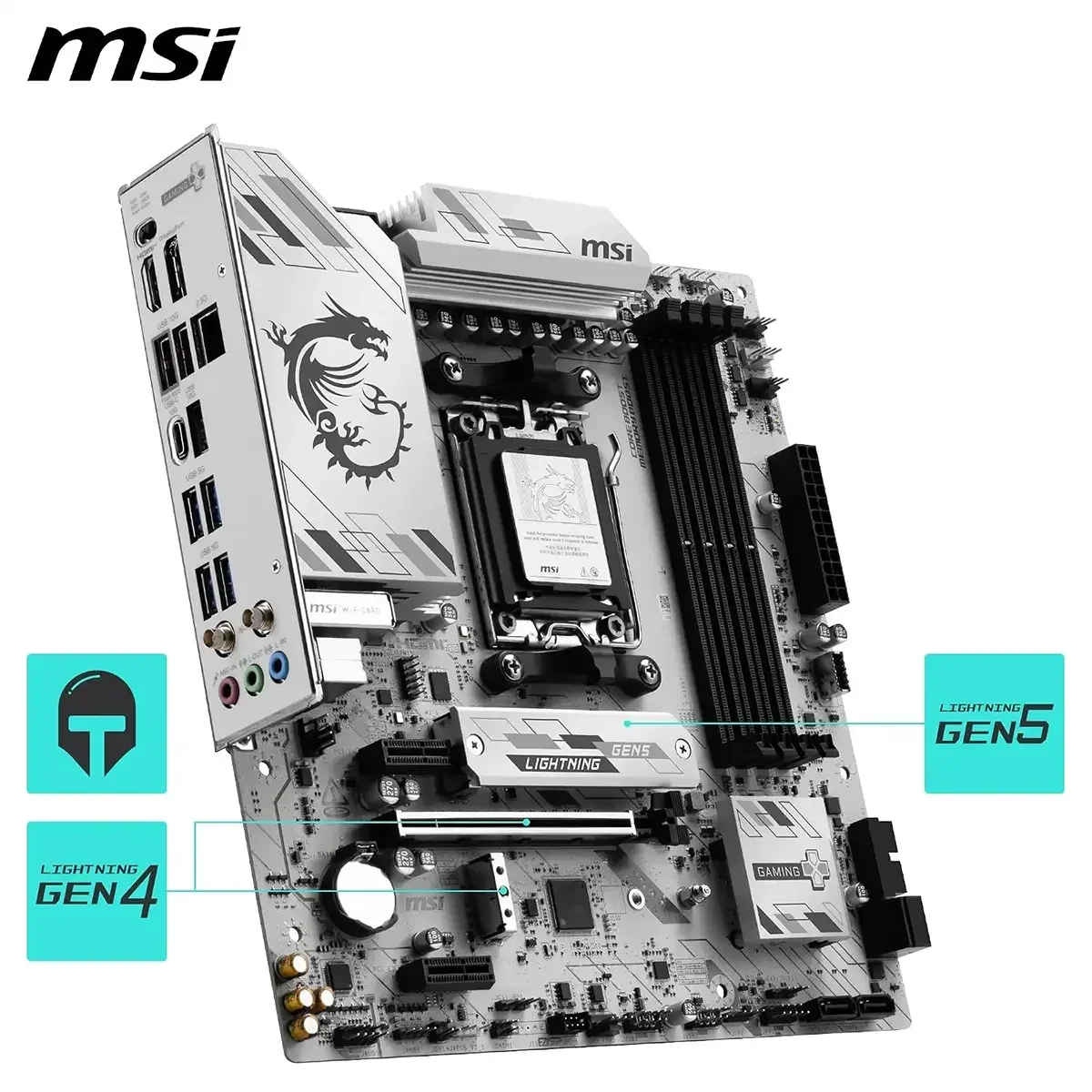

Lightning Gen 5 PCIe & Gen 5 M.2 Storage: The primary graphics slot supports up to PCIe 5.0 x16 with compatible Ryzen 9000 and Ryzen 7000 processors, delivering a high-bandwidth interface for modern graphics hardware, while the first M.2 connector supports up to PCIe 5.0 x4 for next-generation NVMe SSDs. A second PCIe 4.0 M.2 slot and four SATA 6Gb/s connectors provide additional storage flexibility for users who want a fast operating-system drive together with larger game libraries, media collections, project storage and backup drives.
Wi-Fi 7, Bluetooth 5.4 & 5G LAN Connectivity: The integrated Wi-Fi 7 solution supports 2.4GHz, 5GHz and 6GHz operation with 160MHz channels, MU-MIMO, MLO and 4K-QAM for theoretical wireless speeds up to 2.9Gbps under compatible conditions, while Bluetooth 5.4 provides modern peripheral connectivity and Realtek 8126 5G LAN delivers wired Ethernet speeds up to 5Gbps. Together, these networking options provide a strong foundation for low-latency online gaming, NAS transfers, cloud workflows, high-resolution streaming and multi-device home or professional networks.

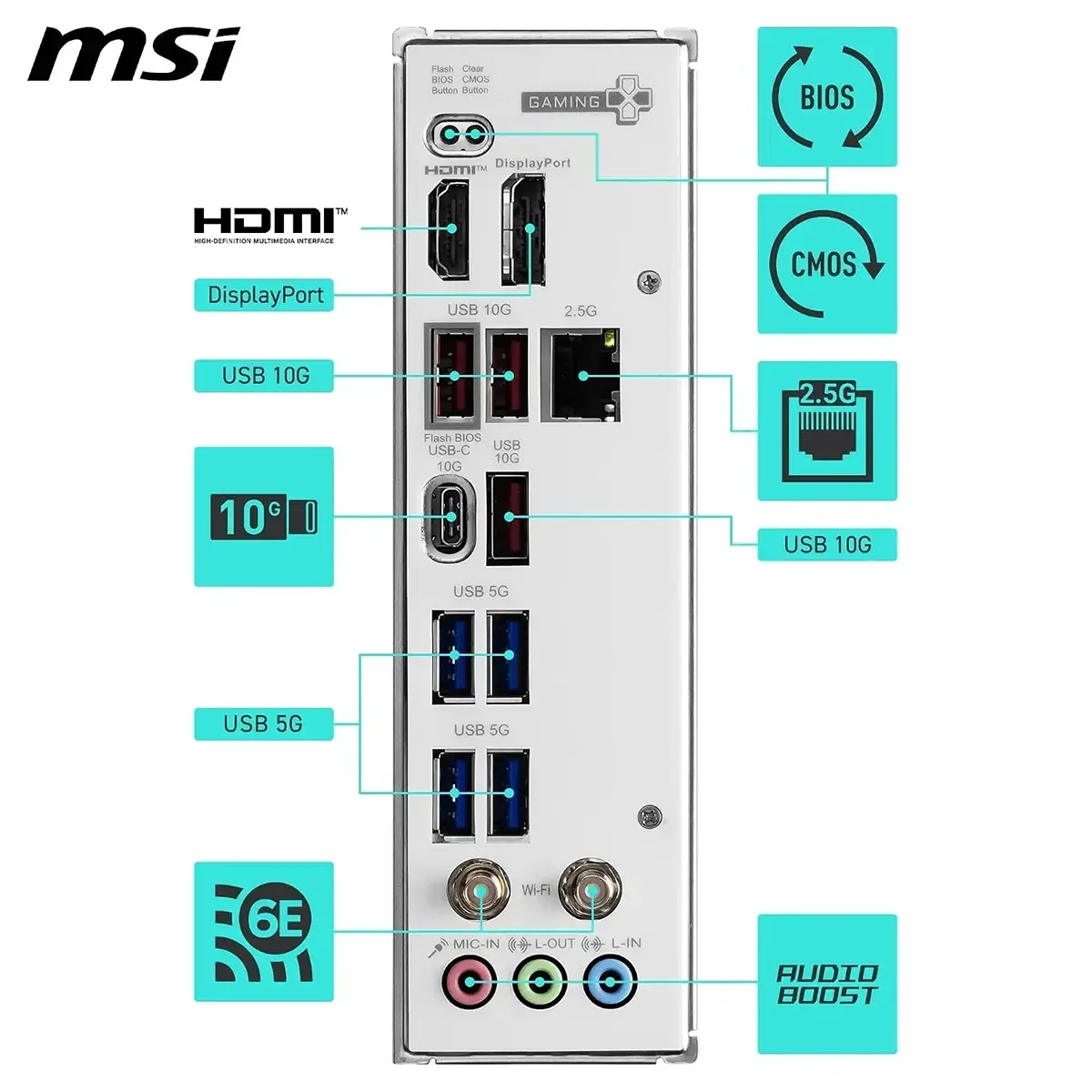

High-Speed USB & Modern Display Connectivity: A generous rear I/O configuration provides three USB 10Gbps Type-A ports, two USB 10Gbps Type-C ports and three USB 5Gbps Type-A ports for fast external SSDs, controllers, capture devices, peripherals and accessories, while additional internal headers support front USB Type-C and extra USB connections. HDMI 2.1 and DisplayPort 1.4 can each provide resolutions up to 4K at 60Hz when the installed AMD processor includes compatible integrated graphics, making the motherboard flexible for gaming monitors, productivity displays and multimedia systems.

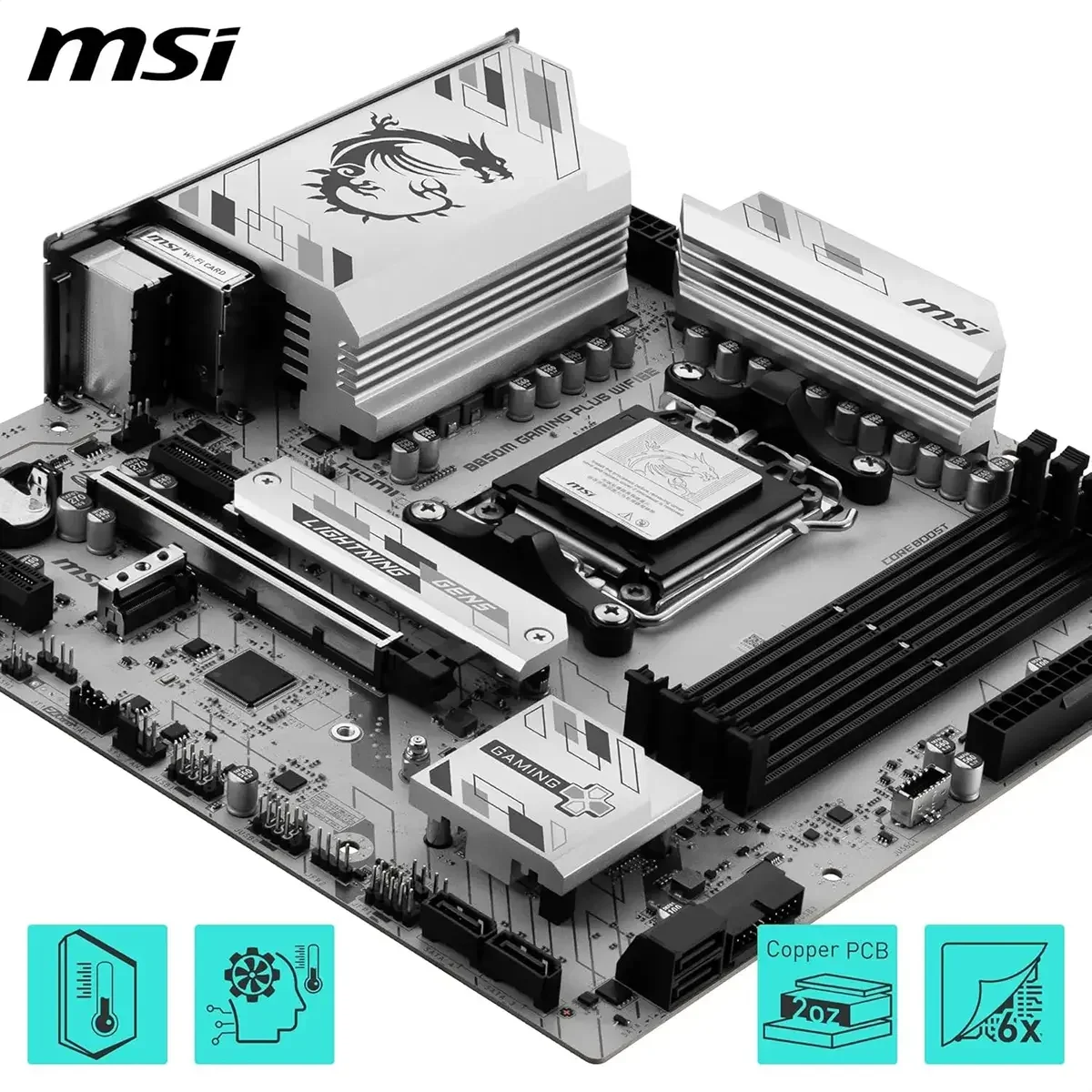

Direct 8+2+1 Power & Advanced Thermal Design: MSI combines a Direct 8+2+1 phase power design, digital CPU power system, 8+4-pin CPU power input and Core Boost technology with a six-layer server-grade PCB using 2oz thickened copper. Extended heatsinks, 7W/mK thermal pads, additional choke cooling and M.2 Shield Frozr help dissipate heat around critical power and storage components, providing a stable foundation for sustained gaming, demanding productivity, content creation and long-duration workloads with compatible Ryzen processors.
Summary
The B850M GAMING PLUS WIFI is a modern Micro-ATX gaming motherboard engineered for users building a powerful AMD AM5 desktop around compatible Ryzen 9000, Ryzen 8000 or Ryzen 7000 Series processors. Powered by the AMD B850 chipset, it combines four DDR5 DIMM slots supporting up to 256GB of memory with overclocked speeds reaching up to 8200+ MT/s on supported configurations, AMD EXPO and Memory Boost for high-performance gaming, multitasking and content-creation workloads. Its primary Lightning Gen 5 PCIe slot supports up to PCIe 5.0 x16 with compatible CPUs, while two M.2 connectors include a PCIe 5.0 x4 storage interface and an additional PCIe 4.0 slot for fast NVMe SSD expansion, supplemented by four SATA 6Gb/s connectors. Premium networking includes Wi-Fi 7 with 2.4GHz, 5GHz and 6GHz support, Bluetooth 5.4 and Realtek 8126 5G LAN for fast wired and wireless connections. Extensive USB connectivity includes multiple rear USB 10Gbps Type-A and Type-C ports plus front USB Type-C support, while HDMI 2.1 and DisplayPort 1.4 provide up to 4K 60Hz video output when paired with a compatible processor featuring integrated graphics. A Direct 8+2+1 phase power design, Core Boost, 8+4-pin CPU power, six-layer server-grade PCB with 2oz copper, Extended Heatsink Design and M.2 Shield Frozr help maintain stable operation during sustained loads. EZ PCIe Clip II, EZ M.2 Clip II, EZ Antenna, Flash BIOS, Clear CMOS, EZ Debug LEDs, Audio Boost and Realtek ALC897 7.1-channel audio complete a feature set designed for gamers and builders seeking strong performance, high-speed networking, convenient installation and modern expandability in a compact mATX platform.
