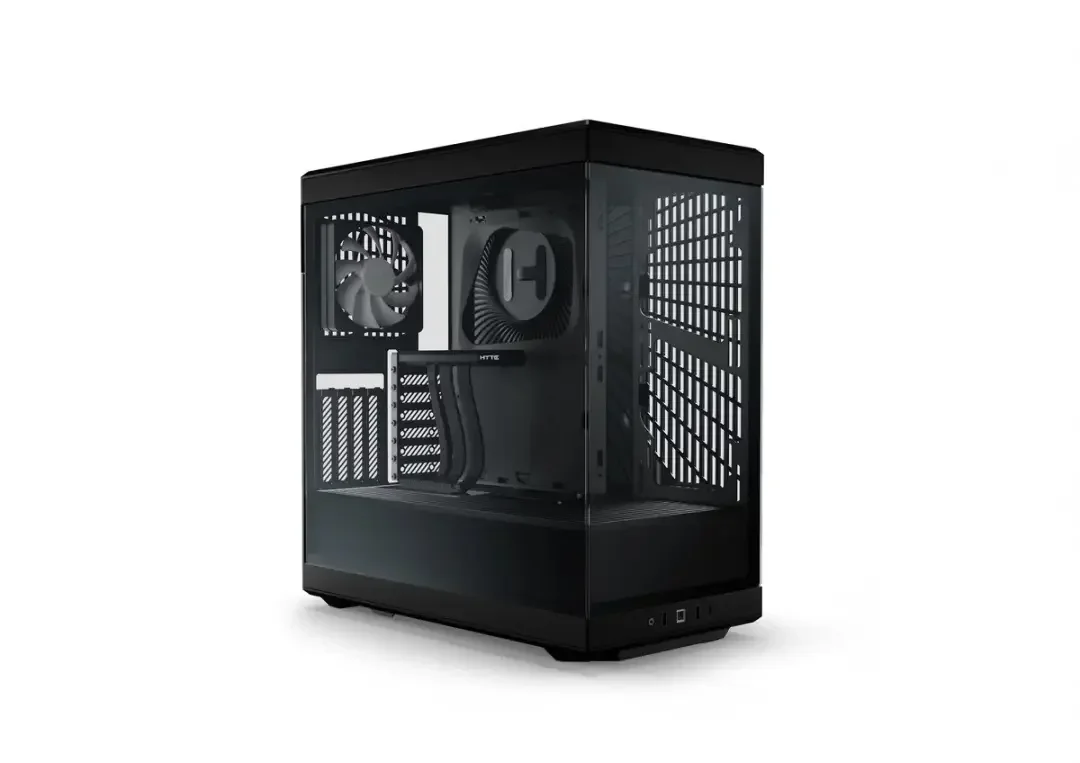

ATX Panoramic Gaming PC Case with PCIe 4.0 Riser & 360mm Radiator Support

Features

• Two-Piece Panoramic Glass Showcase Design: The Y40 uses a distinctive two-piece panoramic glass layout engineered to create an unobstructed view into the gaming system, allowing the graphics card, motherboard, memory, CPU cooling and internal lighting to become a central visual element of the completed build. HYTE combines this showcase architecture with carefully controlled beveled edges throughout the chassis, producing a clean multi-dimensional appearance that is particularly suitable for enthusiasts building premium gaming PCs, streaming stations and creator workstations where presentation is almost as important as component performance.
• Purpose-Built Vertical 4-Slot GPU Support with PCIe 4.0 Riser: Designed around modern large graphics cards, the Y40 expands vertical GPU installation to four full slots and includes a PCIe 4.0 x16 riser cable as standard equipment, eliminating the need to purchase a separate riser for the intended vertical configuration. Maximum supported GPU dimensions reach approximately 422mm in length and 94mm in height, while HYTE recommends a card height of 80mm or less for the best cooling performance. Additional spacing between the vertically mounted graphics card and panoramic glass helps improve airflow compared with tightly packed showcase designs, while six half-height PCIe positions remain available behind the primary graphics-card area for compatible expansion hardware.
• 360mm Top & 280mm Side Liquid-Cooling Support: Provides substantial cooling flexibility for performance-oriented gaming and creator systems, with radiator compatibility of 120mm, 240mm or 360mm at the top, 120mm at the rear and 120mm, 140mm, 240mm or 280mm along the side. The side radiator area supports up to approximately 120mm of combined radiator-and-fan thickness, making the enclosure particularly accommodating for thicker cooling hardware and custom-loop configurations. This flexible radiator architecture allows builders to configure large CPU AIO coolers, dual-radiator liquid-cooling layouts or high-airflow fan arrangements according to processor thermals, GPU cooling requirements and preferred system appearance.
• Dual 120mm Fans Pre-Installed with Dedicated GPU Intake: Comes with two 120mm 1300RPM fans already installed, including one rear exhaust fan and one intake fan beneath the power-supply shroud. HYTE specifically positions the lower fan to deliver fresh air upward toward the vertically mounted graphics card, helping provide direct cooling where modern high-performance GPUs need it most. Additional fan positions include two 120/140mm mounts on the side, three 120mm positions on the top and support for a 120/140mm bottom fan, giving users room to expand airflow significantly when building systems with high-power processors and graphics cards.
• 422mm GPU & 183mm CPU Cooler Clearance: Offers substantial hardware compatibility for an aesthetic-focused Mid-Tower, supporting graphics cards up to 422mm long and large tower-style CPU air coolers up to 183mm high. The generous CPU-cooler clearance allows builders to choose from a wide range of premium dual-tower and high-performance air-cooling solutions instead of being forced into liquid cooling, while the long GPU clearance accommodates many oversized contemporary graphics cards. ATX power supplies up to 224mm in length are also supported, providing useful flexibility when building high-end gaming systems with higher-capacity modular power supplies.
• Modern USB-C Front Connectivity & Flexible Storage: Provides easy-access front connectivity with two USB 3.0 Type-A ports, one USB 3.2 Type-C port and a combined Audio/Microphone jack for everyday peripherals, external storage, smartphones, headsets and other compatible accessories. Internal storage support accommodates either a 3.5-inch HDD or up to two 2.5-inch SSDs according to HYTE's official specification, giving builders practical options for fast game storage or higher-capacity local data. The 50L chassis volume also provides useful working room for routing internal cables and assembling modern ATX systems while maintaining the clean showcase appearance of the panoramic interior.
